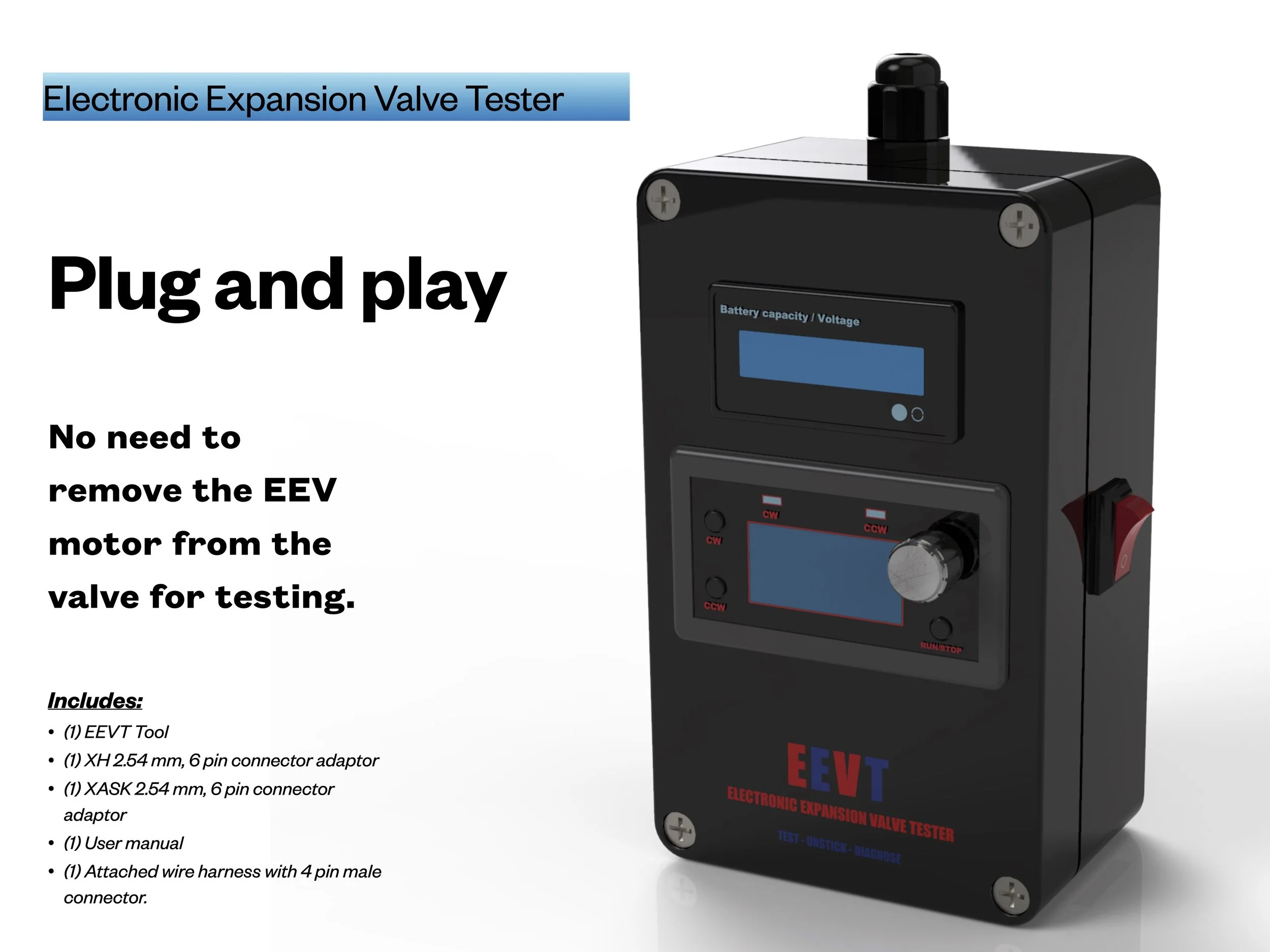

Electronic Expansion Valve Tester: MLE2023-OSH001

The EEVT tool helps to test, unstick and diagnose the electronic expansion valves. This electronic expansion valve diagnostics/troubleshooting tester tool is a must-have for any HVAC/R technician. With its advanced features and high-quality build, it is the perfect tool for diagnosing and troubleshooting a variety of issues pertaining to electronic expansion valves in air conditioning and refrigeration systems. This tool is designed to be user-friendly and easy to use, with a simple interface that allows you to quickly and easily identify the issue with the affected EEV/LEV. Whether you are a professional or a DIY enthusiast, this tool is the perfect addition to your toolkit. Order your electronic expansion valve tester tool today and start enjoying the many benefits that it has to offer.

Purchase includes:

  • (1) EEVT Tool

  • (1) XH 2.54 mm, 6 pin connector adaptor

  • (1) XASK 2.54 mm, 6 pin connector adaptor

  • (1) Dupont 2.54 mm, 6 pin connector adaptor

  • (1) Attached wire harness with 4 pin male connector

CARRYING BAG AND BATTERIES NOT INCLUDED.

Designed and programmed for use on VRV, VRF and Mini-split electronic expansion valves, but may also be used for domestic refrigeration applications.  Additional adaptors sold separately. Tool drives both Bi-polar and Uni-polar motors.

IMIT-Model: MLE2023-OSH001

Adaptive motor: Stepper

Number of control axes: Single axis

Motor signal: Common cathode

Power supply range: DC 5-30V universal

Driving capacity: 4A

Instruction features: Simplify and optimize multiple common instructions

Acceleration and deceleration control: Yes

Input reverse connection protection: Yes

Remote communication control: TTL serial port (Not applicable for current use)

Main functions of the system: Automatic, manual, setting, serial port control

Speed range: 0.1 - 999

Number of forward rotation pulses: 1 - 9999 pulses

Number of reverse pulses: 1 - 9999 pulses

Number of cycles: 1 - 9999

Forward rotation delay time: 0.0 - 999.9 seconds

Reverse delay time: 0.0 - 999.9 seconds

Subdivision selection range: 1 - 32 subdivision

Product use environment: 5C - 60C (no condensation)
